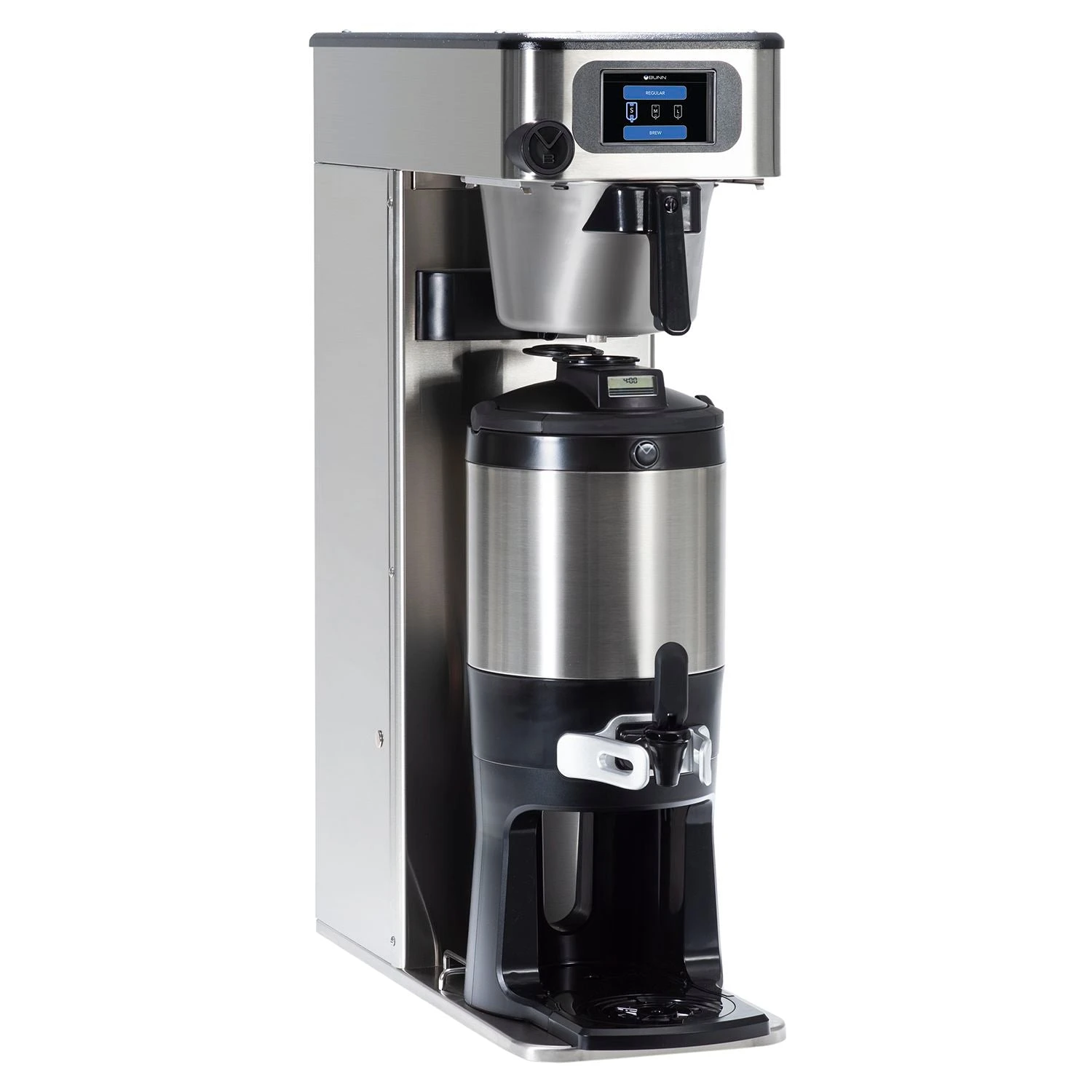

BUNN® BUNN ITCB DV HV Platinum Edition Tea & Coffee Brewer

This Infusion Series Tea & Coffee Brewer is dual-volt and high volume. As part of the Platinum Edition, it features a 4.3″ color touchscreen for an enhanced operation experience, allowing users to customize recipes with Visually Intuitive Planning. Perfect for universities, restaurants, hotels, convenience stores, and amusement parks.

ITCB DV HV Platinum Edition Features

We love the advertising feature this machine has. You can add up to 10 screensaver images to advertise and promote your brand and products. It also has the ability to brew coffee and tea with a dilution feature for brewing iced coffee.

• A large 3gal (11.4L) tank provides back-to-back brewing capacity.
• Tea brewing capability built-in with integrated dilution nozzle, software, and Quick Brew tea brewing funnel. The dilution feature also allows for brewing iced coffee.
• SmartWAVE sprayhead technology provides enhanced uniformity of extraction and limescale reduction.
• BrewWISE intelligence with pre-infusion and pulse brew for maximum flavor extraction.
• Dual voltage adaptable (Can operate at 120V/15 amp or 120/208-240V/20 amp).
• Includes both coffee (Stainless) and tea (Plastic) funnels.
• Digital temperature control and cold brew lockout.
• Energy-saver mode reduces tank temperature during idle periods.
• Brews into 1.5 gallons and 1.0-gallon BUNN ThermoFresh servers for coffee and TD4T, TDO, and TDO-N tea dispensers.

*server not included but we suggest this tea server and this coffee server.

About The Brand

Bunn is a well-recognized brand in the coffee industry, and most abundant in your local grocery stores. Their grinders are precise and easy to use, even for the average consumer who grinds their own coffee on a shopping trip with children in tow. Their assortment of batch brew coffee machines, coffee grinders, commercial airpots, and coffee dispensers are well trusted for their delivery of high-quality beverages in every cup.

Split

Warranty	2yrPrts/1yrLabor/3yrCBA
Finish	Stainless
Funnel Type	Stainless Steel, Translucent Tea Funnel
Electrical Configuration 1	120/240V / 4050W / 16.8 amps / 1~ / 60 Hz / 3 wire
Electrical Configuration 2	120V / 1700W / 14 amps / 1~ / 60 Hz / 2 wire
Electrical Configuration 3	120/208V / 2900W / 13.8 amps / 1~ / 60 Hz / 3 wire
Plug Type	NEMA 5-15P
Cord Attached	Yes

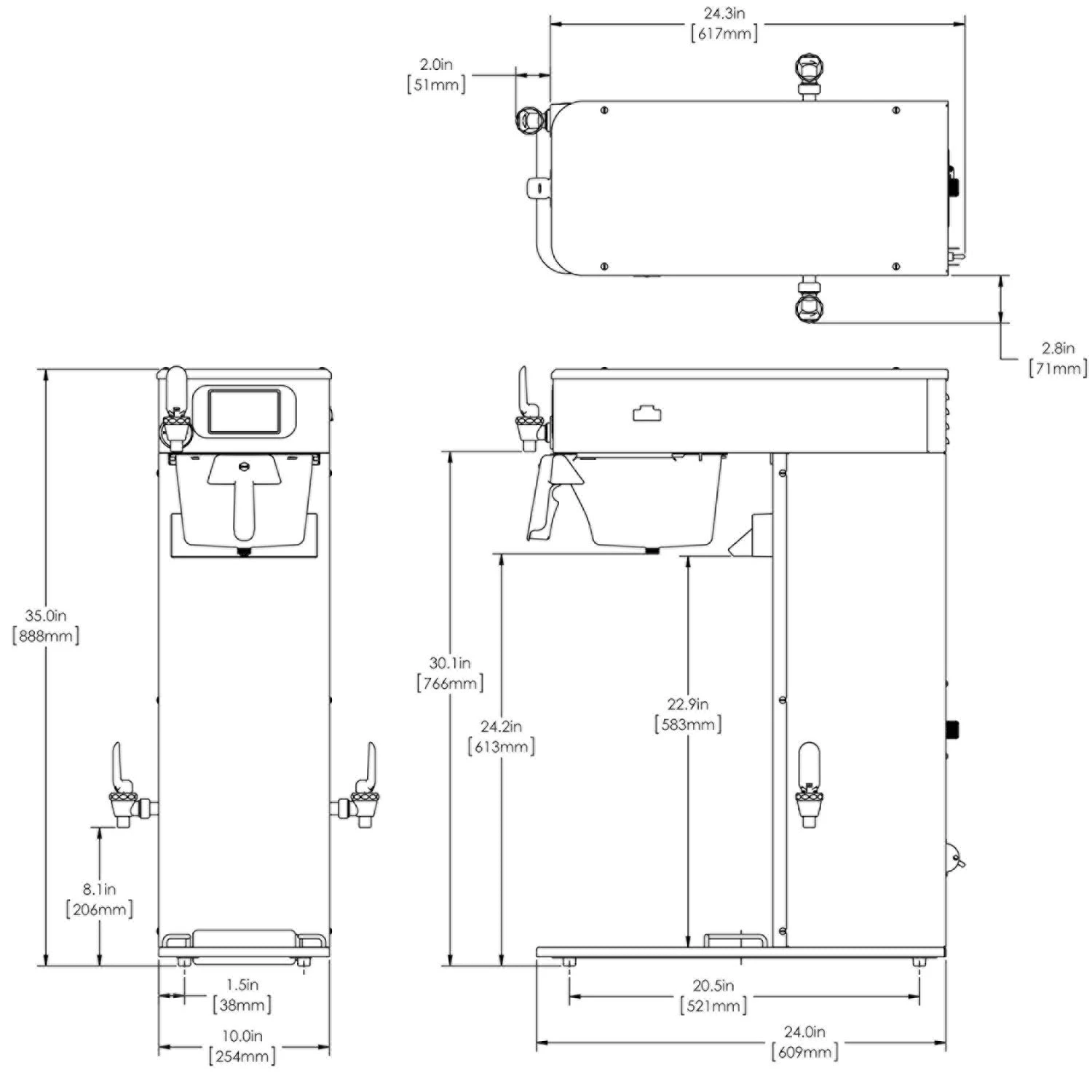

Trunk Height	29 in.
Machine Height	35 in.
Machine Width	10 in.
Machine Depth	24.3 in.
Net Weight	78.4 lbs.
Carafe/Server	1.5 gallon & 1.0-gallon BUNN ThermoFresh servers for coffee, and TD4T, TDO, and TDO-N tea dispensers.
Water Access	Plumbed
Min/Max Water Pressure	20.0 psi / 90.0 psi
Flow Rate Required	1.25
Water Fitting	3/8″ Male Flare Fitting
Certifications	UL Listed, NSF Certified
MPN	54000.0100
