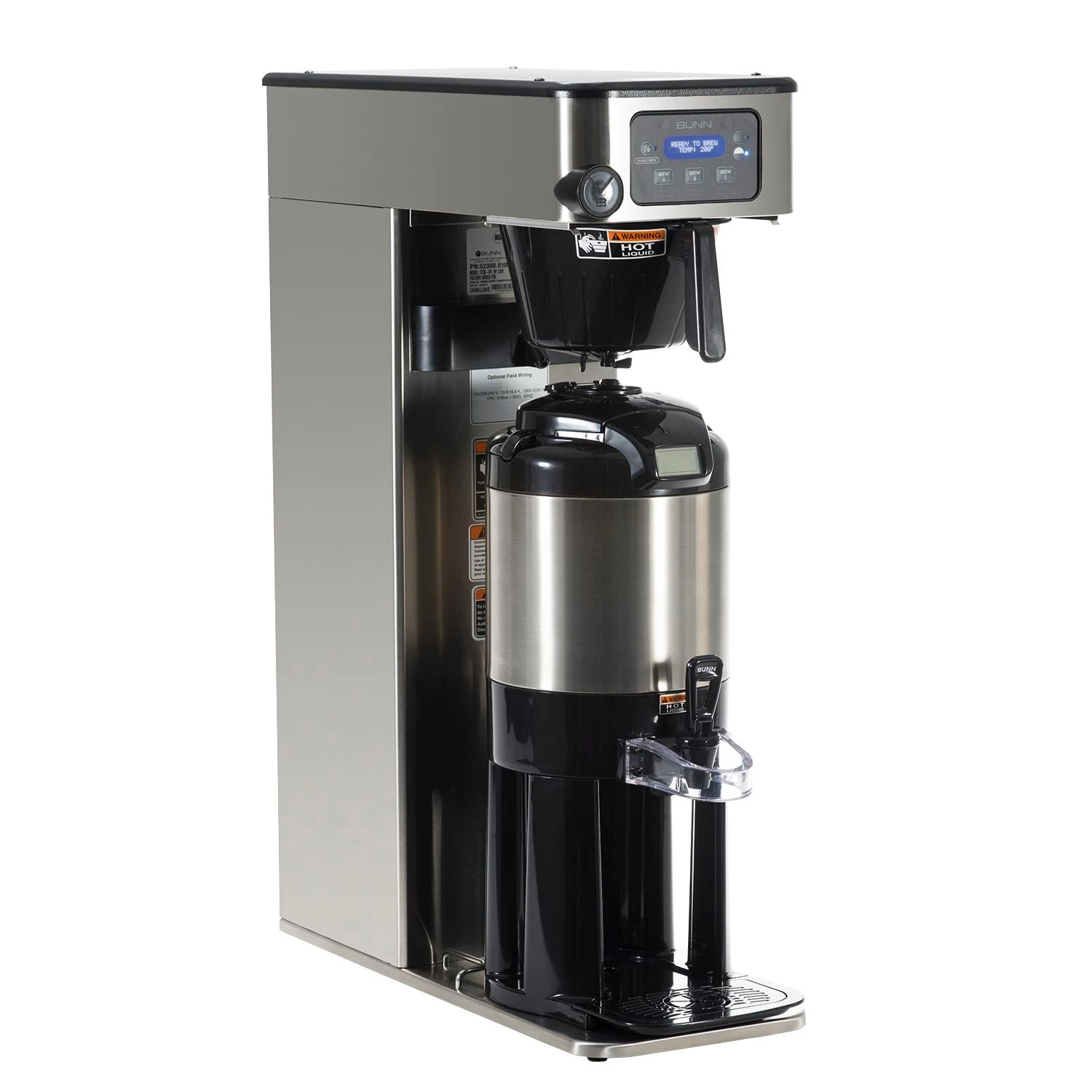

BUNN® BUNN ITCB-DV-HV Tea & Coffee Brewer

The ITCB HV Infusion Series Tea/Coffee brewer provides the ability to brew both great tea and coffee products from one small footprint. This High Volume version gives you faster temperature recovery between brews. The Peak Extraction sprayhead provides improved uniformity of extraction and greater resistance to lime scale buildup.

ITCB-DV-HV Features

The Infusion Series Tea/Coffee Brewer has the option for dual voltage so you can brew at a higher volume. It has both coffee and tea brewing capabilities with a built-in integrated dilution nozzle, software, and a Quick Brew tea brewing funnel. BUNN Infusion Series technology allows for multiple recipes from one footprint with three brew buttons and two batch sizes. Perfect for cafés, restaurants, and hotels.

• Exclusive Peak Extraction Sprayhead is multi-directional with a 17-hole design to ensure ultimate uniformity of extraction.
• Dual voltage adaptable (can operate at 120V/15 amp or 120/208-240V/20 amp).
• Pre-infusion and pulse brew for maximum flavor extraction. Cold-brew lockout & digital temperature control further ensure top-notch brewing.
• Hot water faucet (supplied for custom installation).
• Electronic funnel lock prevents removal of each brew funnel until drip-through is complete.
• Brew counter keeps track of how many batches are brewed.
• Energy-saver mode reduces tank temperature during idle periods.
• Includes overlay kit for customization on brewer interface.
• Brews into 1.5 gallons and 1.0-gallon BUNN ThermoFresh servers for coffee and TD4T, TDO, and TDO-N tea dispensers.

*server not included but we suggest this tea dispenser and this coffee server.

About The Brand

Bunn is a well-recognized brand in the coffee industry, and most abundant in your local grocery stores. Their grinders are precise and easy to use, even for the average consumer who grinds their own coffee on a shopping trip with children in tow. Their assortment of batch brew coffee machines, coffee grinders, commercial airpots, and coffee dispensers are well trusted for their delivery of high-quality beverages in every cup.

Split



Warranty	2yrPrts/1yrLabor/3yrCBA
Finish	Stainless
Electrical Configuration 1	120/208V / 2900W / 13.8 amps / 1~ / 60 Hz / 3 wire
Electrical Configuration 2	120V / 1700W / 14 amps / 1~ / 60Hz / 2 wire
Electrical Configuration 3	120/240V / 4050W / 16.8 amps / 1~ / 60 Hz / 3 wire
Cord Attached	Yes
Machine Height	35 in.
Machine Width	10 in.
Machine Depth	24.3 in.
Net Weight	58.4 lbs.
Carafe/Server	1.5 gallon & 1.0-gallon BUNN ThermoFresh servers for coffee, and TD4T, TDO, and TDO-N tea dispensers.
Water Access	Plumbed
Min/Max Water Pressure	20.0 psi / 90.0 psi
Flow Rate Required	1.25
Water Fitting	3/8″ Male Flare Fitting
Certifications	UL Listed, NSF Certified
MPN	52300.0100
