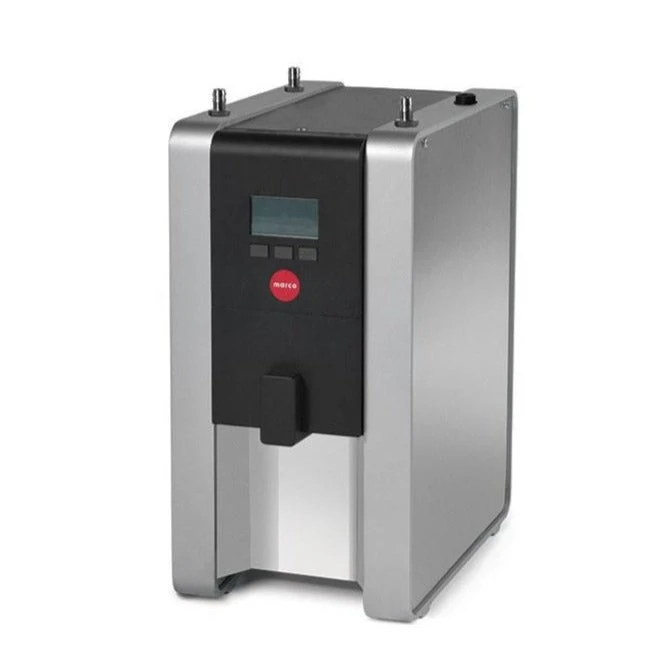

Marco Mix UC3 Undercounter Hot Water Dispenser – 3L

The Mix UC3 220v boiler is designed with a vacuum insulated tank that retains heat and keeps water at a consistent, reliable temperature. The MIX under counter can deliver water at three temperatures and three volumes in an instant. The stylish, space-saving under-counter version allows for clean counters and more face-to-face customer interaction. Use with the MIX 3 Button Font or MIX 1 Button Font.

Mix UC3 Hot Water Dispenser Features

This next-generation energy-efficient multi-temperature under-counter boiler is perfect for artisan cafés, specialty coffee roasters, café chains, bars, and restaurants.

• Multi-temp boiler.
• Accurate programmable portion dispenses.
• Vacuum insulated tank for up to 70% more energy efficiency.
• 7.5 gallons output per hour.
• 156 cups per hour.
• 220v.

Drip Tray and Dispense Tap are purchased separately.

Split

• Dimensions (D x W x H): 15.1 x 8.2 x 17.4 in.
• Immediate Draw Off: 0.8 GAL / 3L.
• GAL/HR: 7.3 GAL.
• Power: 2.8Kw@220V.
• NEMA: L6-20P.
• Plumbing Requirements: 3/8” Compression or 3/8” John Guest.
• Counter cutouts are required.
• Autofill/plumbed.
• Compatible with 1B Una Font (1000859) or 3b MIX Font (1000879).
• MPN: 1000880.
